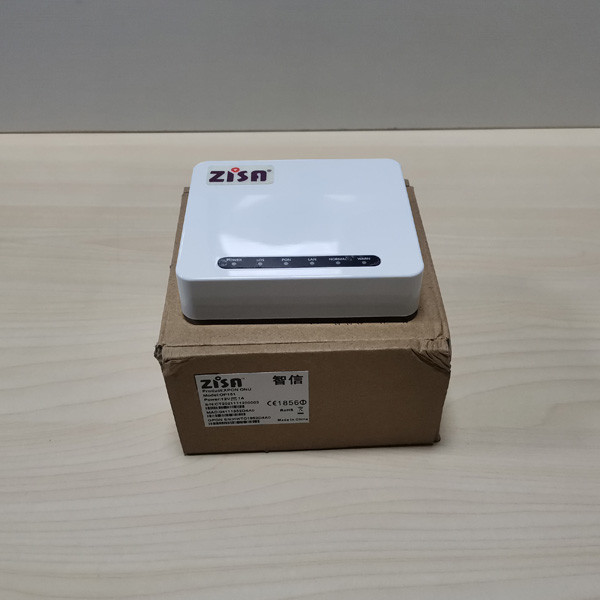

    Realtek 9601D XPON ONT Splitter Network Device Modem

    Ask Lasest Price
    Brand Name : ZISA
    Model Number : OP151
    Certification : CE
    Price : 12-15USD
    Payment Terms : T/T
    Supply Ability : 10000PCS
    Delivery Time : 5-8weeks
    • Product Details
    • Company Profile

    Realtek 9601D XPON ONT Splitter Network Device Modem

    XPON ONT Splitter Fiber Optic ONT network device Modem Fiber Optic


    Panel lights and Introduction


    PilotStatusDescription
    POWEROnThe device is powered up.
    OffThe device is powered down.
    LOSBlinkThe device doses not receive optical signals.
    OffThe device has received optical signal.
    PONOnThe device has registered to the PON system.
    BlinkThe device is registering the PON system.
    OffThe device registration is incorrect.
    LANOnPort is connected properly (LINK).
    BlinkPort is sending or/and receiving data (ACT).
    OffPort connection exception or not connected.

    Feature


    • Support IGMP transparent/snooping/proxy
    • In compliant with ITU-T G.984.x and IEEE802.3ah standard
    • Compatible with popular OLT (HW, ZTE, FiberHome,Vsol...)

    Product Specifications


    Technical ItemDetails
    PON interface

    1 GPON/EPON port(EPON PX20+ and GPON Class B+)

    Upstream: 1310nm, Downstream: 1490nm

    SC/APC connector

    Receiving sensitivity: ≤-27dBm

    Transmitting optical power: 0~+4dBm

    Transmission distance: 20KM

    LAN interface

    10/100/1000Mbps auto adaptive Ethernet interfaces.

    10/100/1000M Full/Half, RJ45 connector

    LED4 LED, For Status of POWER, LOS, PON, LAN
    Push-Button2, for Function of Power on/off, Reset
    Operating condition

    Temperature : 0℃~50℃

    Humidity :10%~90%(non-condensing)

    Storing Condition

    Temperature : -40℃~+60℃

    Humidity :10%~90%(non-condensing)

    Power supplyDC 12V/1A
    Power Consumption<3W
    Net Weight<0.2kg

    Company Profile:


    ZISA Technology Limited was created in 2004, based in Beijing.

    We are an innovative ICT company for more than 10 years.

    ZISA is committed to providing the professional service and solutions to oversea customers, making continuous innovation to meet the requirements of customers.As a global market company, ZISA Fibre PON equipment, wireless AP solutions and xDSL solutions have been reached over 30 countries and regions.


    Our team are full of creative and energetic engineers and workers.The innovative,comprehensive IT technique was grasped by us.Some of them has been worked in famous companies.The factory which cooperate with us is T&W with huge productivity.We also have flexible selling module---ODM&OEM,as agent are all welcome.
